    Techkon

    SDN4-B

    Techkon SpectroDens Basic

    Wireless Option

    • spectrodens package

      What is included?

      • The measurement device
      • A Charger
      • Console with integrated white standard
      • AC adapter with universal plugs
      • Device case
      • USB-cable
      • CD with SpectroConnect software
      • Manual with ISO 9000 certificate and a two year warranty

      Techkon SpectroDens Basic

      Basic SpectroDens Features

      spectrodens expressomini
      Automatic Density, Gray Balance Measurement

      Spectrodens detect how much ink is concentrated in an area and inform ink density adjustment that will give the best color match. A unique report shows density variation across press along with adjustment for each section.

      Densities CMYK, Spot Color Density

      Both CMYK density and spot color density can be controlled to user preferences.

      Dot Gain, Dot Area, Contrast

      The device can determine solid ink density, percents dot area, gray balance and deltaE color datas which are critical for Pantone™ and important brand colors.

      spectrodens
      Ink Trapping

      A unique feature for saving ink. It removes the corners of detail from a letter forms, then during the printing, the ink naturally spread to the removed corners.

      Standard USB interface/ Wireless wifi communication(wifi optional)

      Has optional Wireless communication of measured values to the PC running Techkon SpectroConnect software, using standard WLAN network protocol (WiFi).

      Scan Single or Multiple Row Color Bars (Print Curve Density)

      No attachments are needed when scanning color bars up to 8 inches in length. There are 4 integrated guided wheel at the bottom of the machine.

      Printing Plate

      Beside energy and focus of the laser, dot gain is the most important information which has to be checked in plate exposure. Special plate measuring instruments working with video analysis have been developed for this application

      Slur and Doubling Value

      With the measurement function Slur and Doubling printing deficiencies, caused by inexact, geometrical transfer of the image from the plate to the paper can by evaluated.

      spectrodens expressomini
      Expresso Mini (Density Trend)

      Make sure that your solid ink densities are accurate and consistent by quickly and efficiently measuring and displaying individual solid ink densitiesin each ink zone throughout the color bar.

          • Intuitive Display - Easy to read graphic and numeric display of average solid ink density measurements throughoutthe color bar.
          • Quickly Identify Problem Areas - Displays individual solid ink densities throughout the color bar quickly identifying problem areas across the press sheet.

        SpectroDens Model Comparison

        Measurement Modes SpectroDens Basic SpectroDens Advanced SpectroDens Premium
        Automatic Density, Gray Balance Measurement
        Densities CMYK, Spot Color Density
        Dot Gain, Dot Area, Contrast
        Ink Trapping
        Standard USB interface/ Wireless wifi communication
        Scan Single or Multiple Row Color Bars
        Printing Plate
        Slur and Doubling Value
        Expresso Mini
        Supports M0-M3 Measuring Conditions
        CIELab, DEab, XYZ, CIE LChab
        CIE Color Circle
        Gracol G7TM - GrayGuide
        Remission Curve
        Ink Check
        Scan Multiple Patch Color Bars
        On-board Memory stores up to 4,500 Colors
        dE CIELAB, dEcmc, dE94, dE2000 - Displays Visual Color Difference
        CIE LChab, xyY, Luv, LCHuv, DIN Lab99
        ISO Check
        Metamerism index
        Whiteness, Yellowness, Opacity

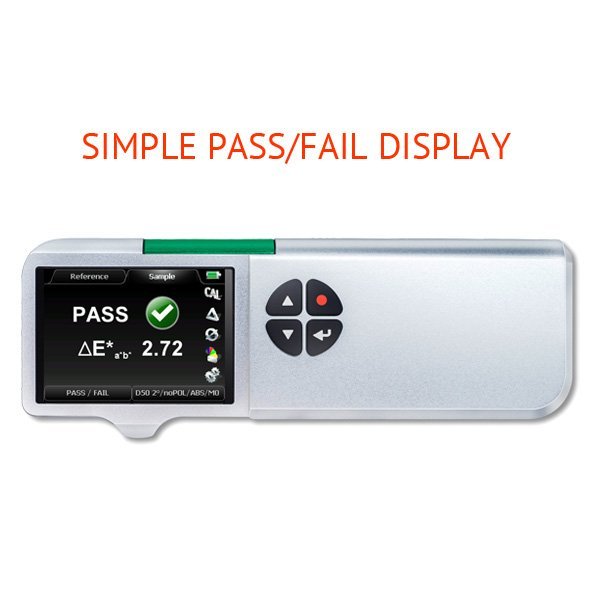

        Pass-Fail Tolerance
        Averaging
        Media Wedge

        VIDEO: Techkon SpectroDens

        SpectroDens
        Watch Video
