    Beta Industries

    BFHR

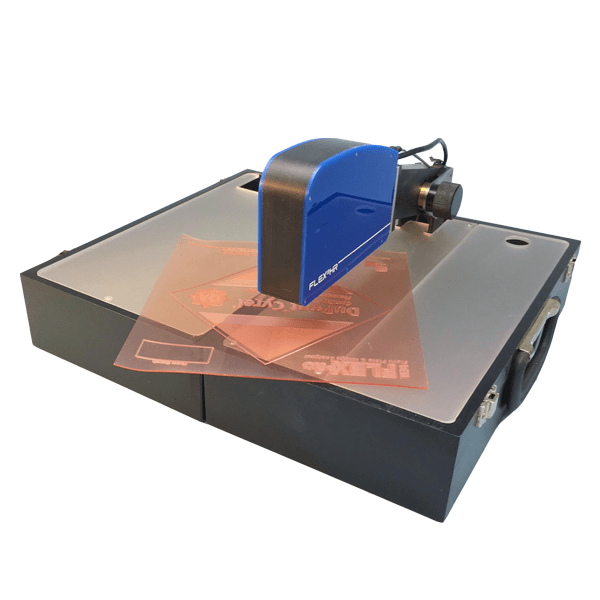

    Beta Industries Betaflex HR Flexo Analyzer

    • Betaflex HR (High Resolution) Flex Analyzer

      BetaflexHR Micro Structure Analysis

      Betaflex HR Flexo Analyzer keeps performance consistent in each step of flexo printing. These steps include laser energy, laser focus, beam uniformity, face and back exposure, plate processing, etc. The physical size of the elements created are typically beyond the capability of Betaflex PRO with screen frequencies over 1000 lines per inch (390 l/cm) and features of 0.0004 inches (10 microns) or less. Features of these microscopic dimensions need to be measured and evaluated for uniformity, shape, and position.

        BetaflexHR Micro Structure Analysis

        Operating at 43,000 pixels per inch

        The Betaflex HR Flexo Analyzer operates in transmission mode to capture and analyze images of laser ablation masks and processed plates at extremely high resolution (43,000 pixel per inch) with excellent contrast and sharpness. No operator adjustments of focus or illumination are required, giving highly accurate and repeatable and handles image capture within the Windows software.

          BetaflexHR Micro Structure Analysis

          Operating in Transmission Mode Only

          The Betaflex HR provides critical insight into the most sophisticated screening techniques available today and is the perfect complement to the BetaFlex Pro which offers 3D Imaging (HD Flexo), 2D transmission, reflection color dot % analysis, as well as many other features.

            BetaflexHR Micro Structure Analysis

            Improved Ink Transfer and Dot Fidelity

            Micro-Structure patterns have been proven to greatly improve ink transfer and dot fidelity, these patterns and textures are sensitive to variations in mask exposure and plate processing. They benefit from the same process control techniques provided by the BetaFlex Pro but require much higher magnification and resolution as provided by the BetaFlex HR
